Mini Cooper S

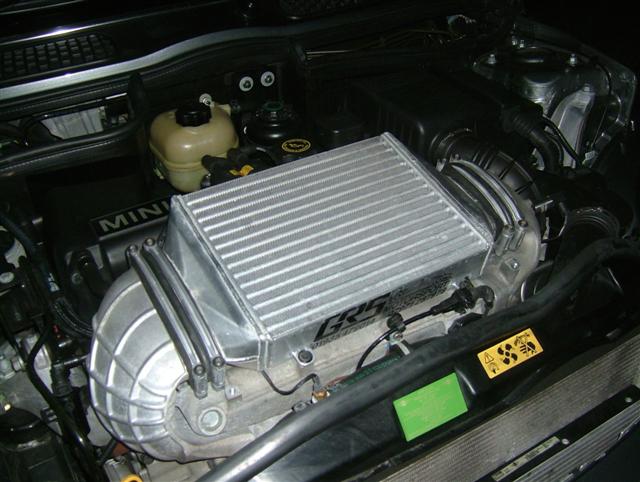

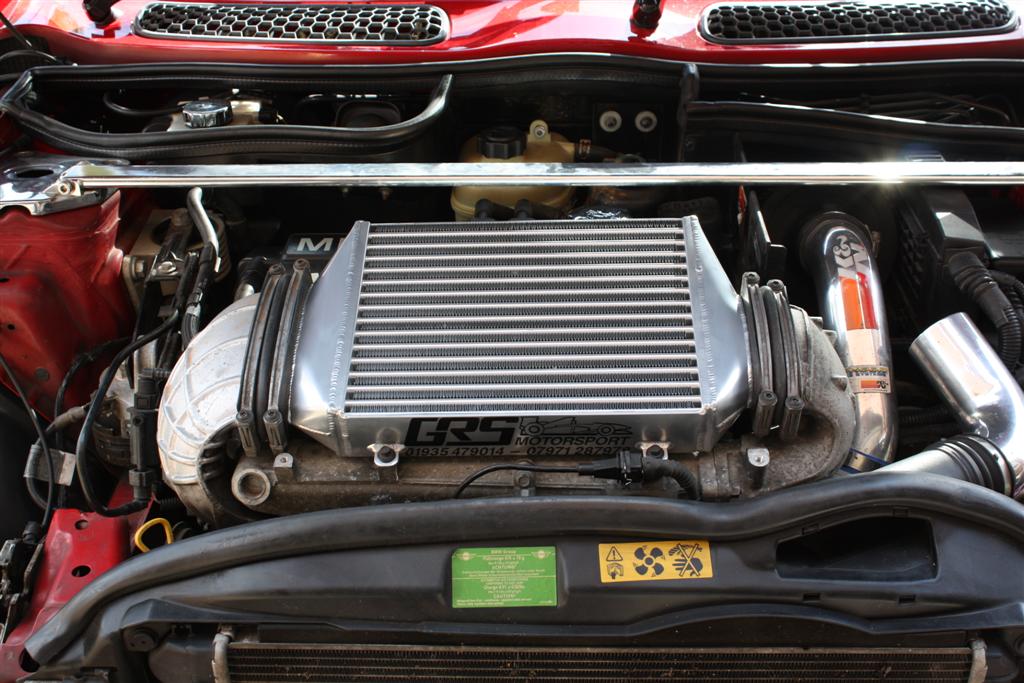

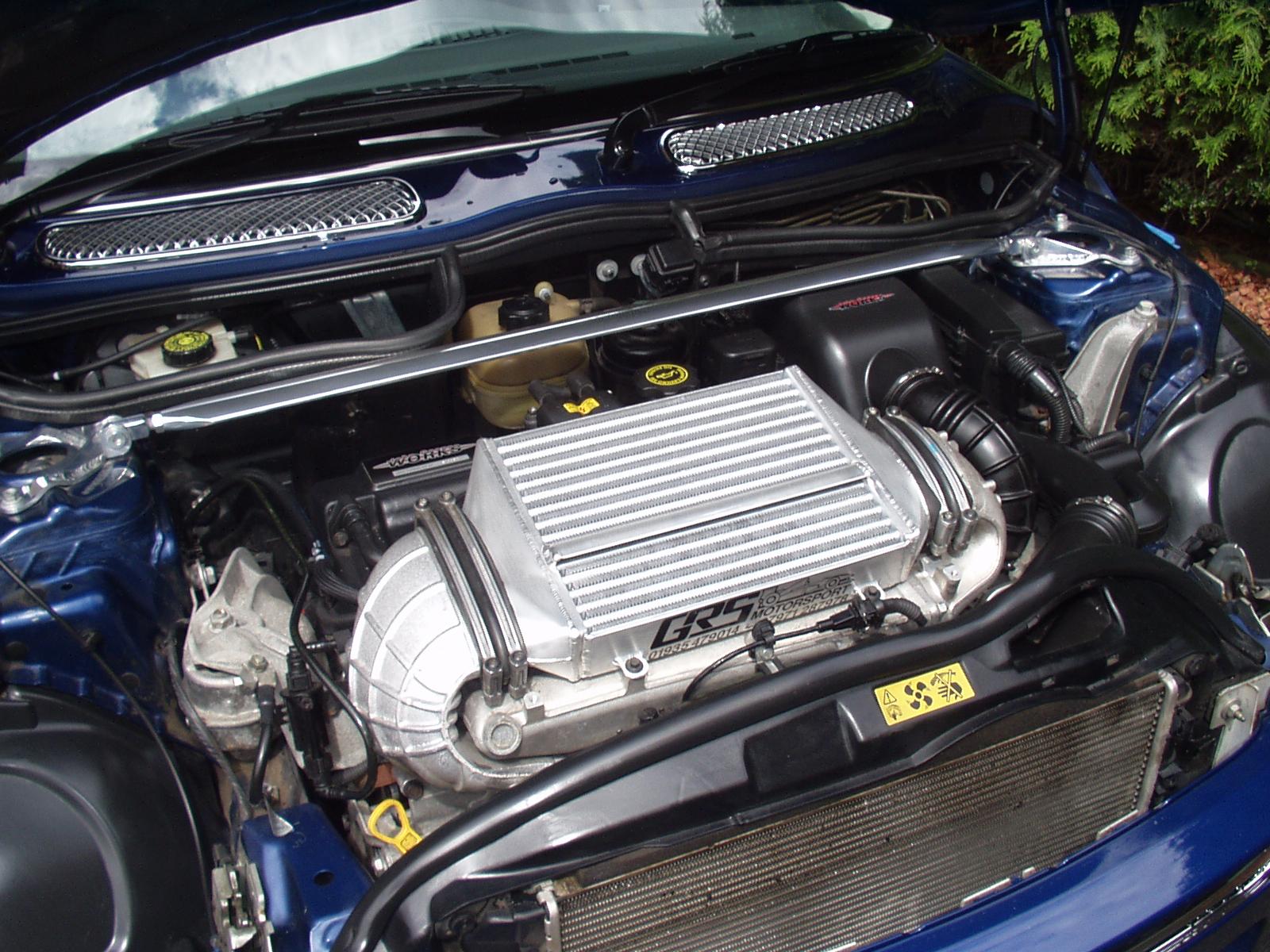

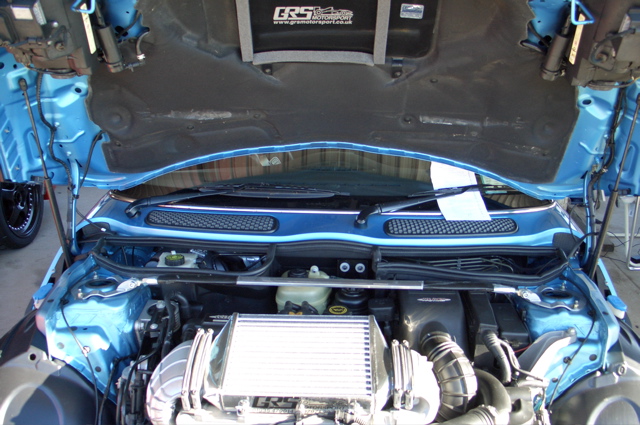

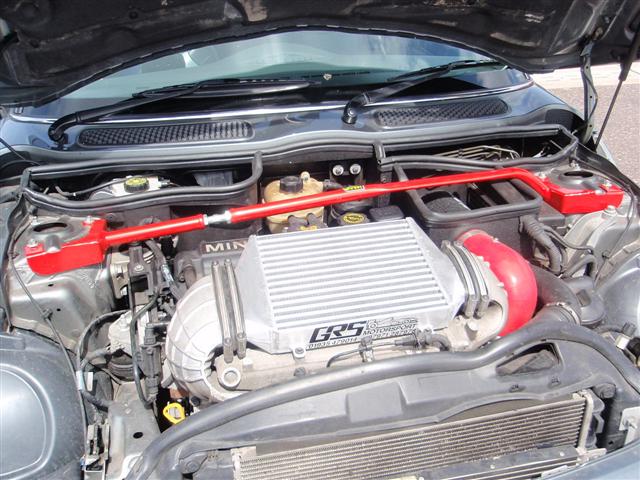

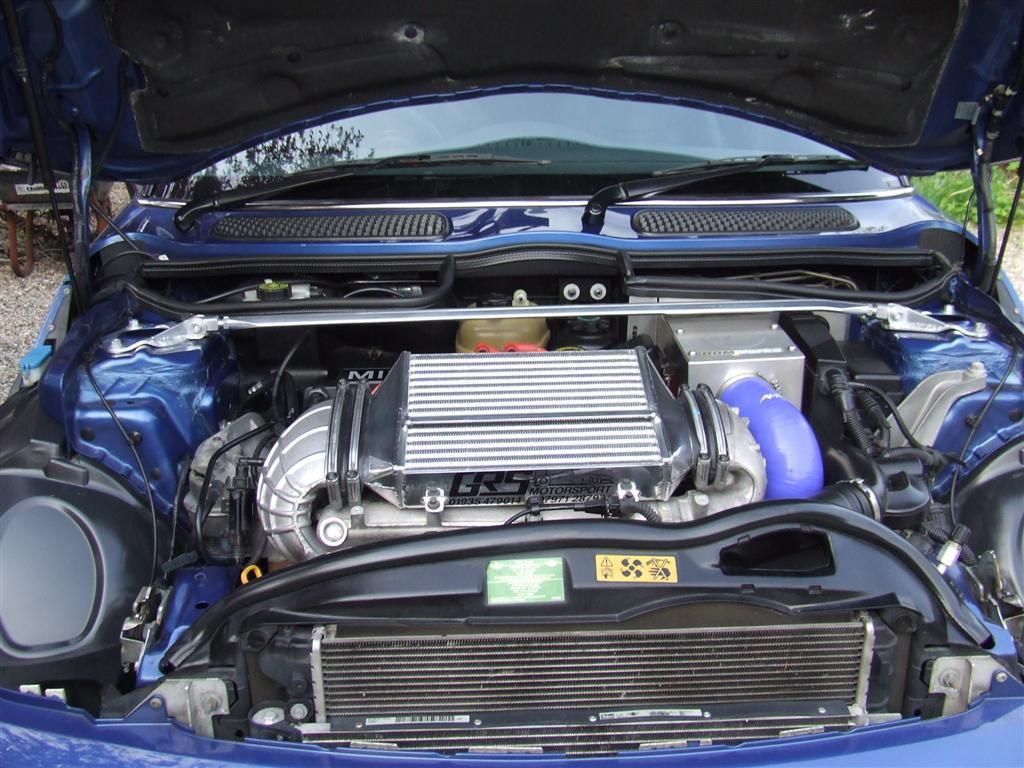

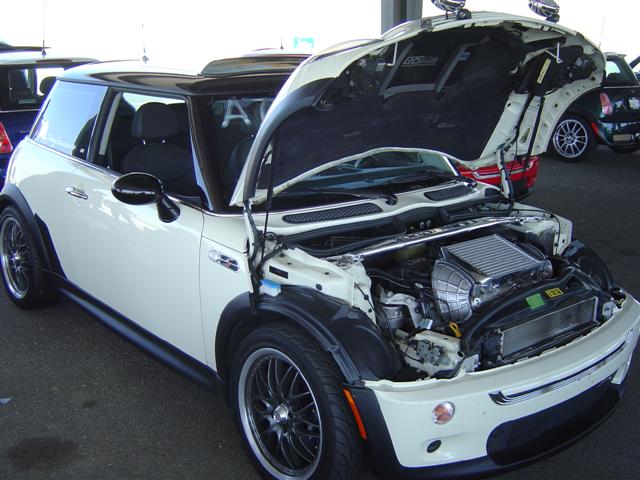

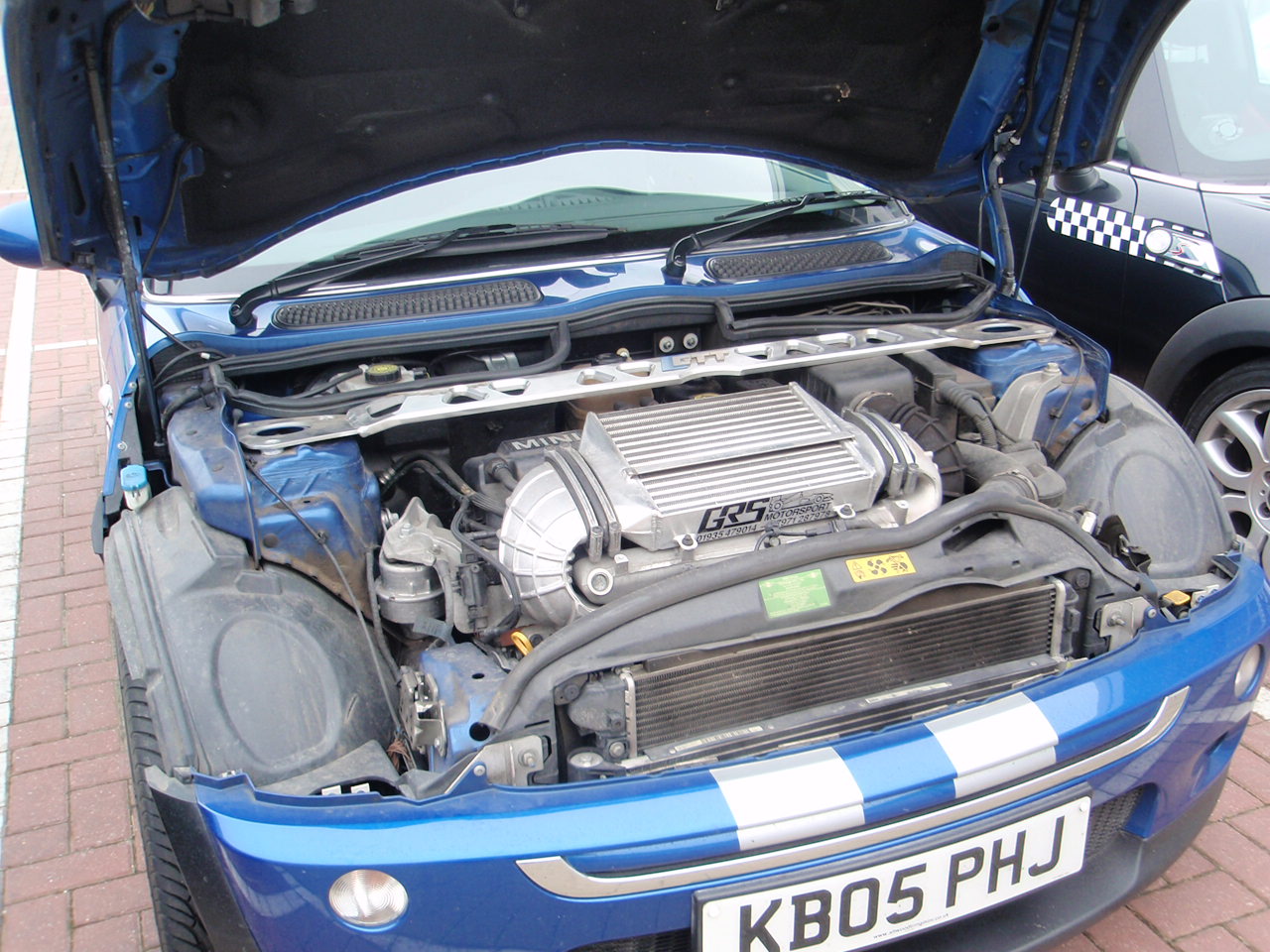

Mini Cooper S Uprated Intercooler : £399.99
Optional Mirror Polished Intercooler End Tanks : £POA
*NEW* Optional Powder Coated Finish : £POA *NEW*
has spent many months in 2004 designing and developing this intercooler with a
special innovated designed diffuser which is the first of its kind. This was

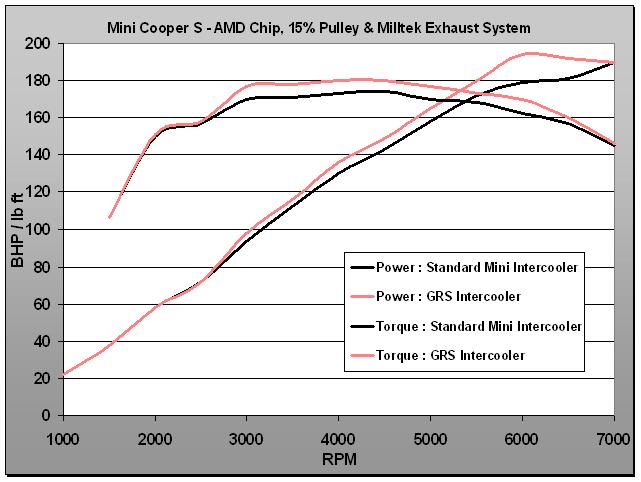

launched to the world last August. Many hours of rolling road testing have been
done to assure this intercooler is the best intercooler of its kind on the
selected the right ‘tube’ & ‘vain pitch’ to ensure the core is right for this

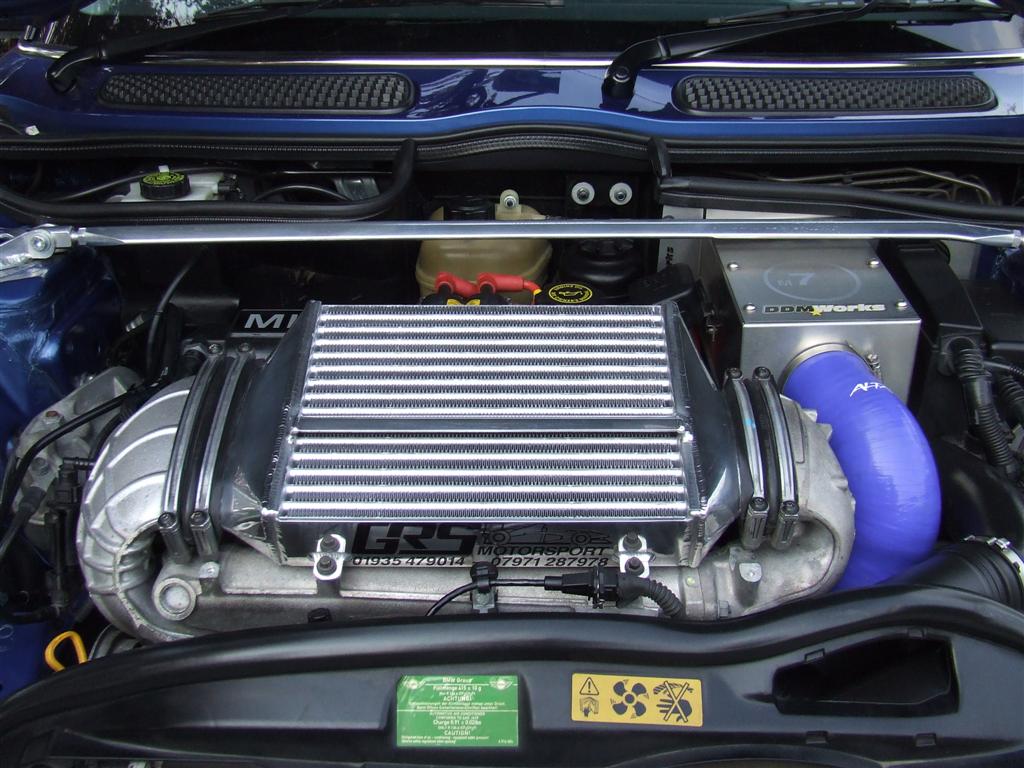

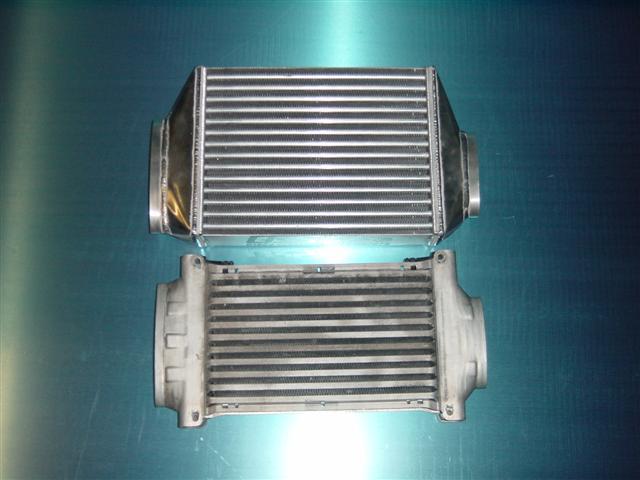

type of top mounted intercooler. The core is the same thickness as the original
to allow maximum air flow from the bonnet scoop, but to achieve greater cooling
has a greater surface area.

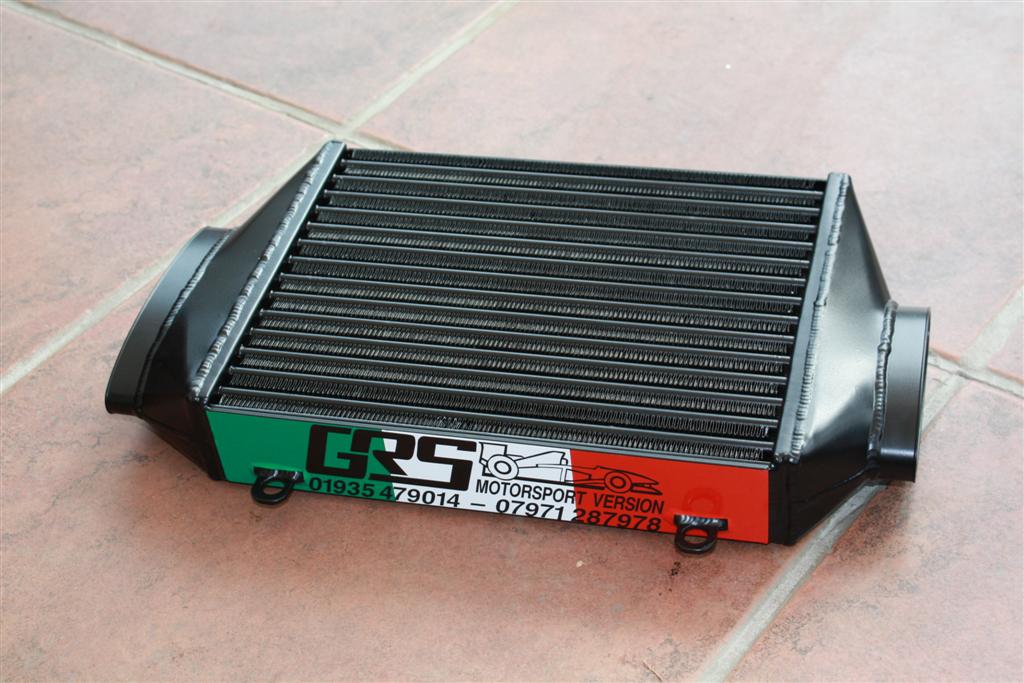

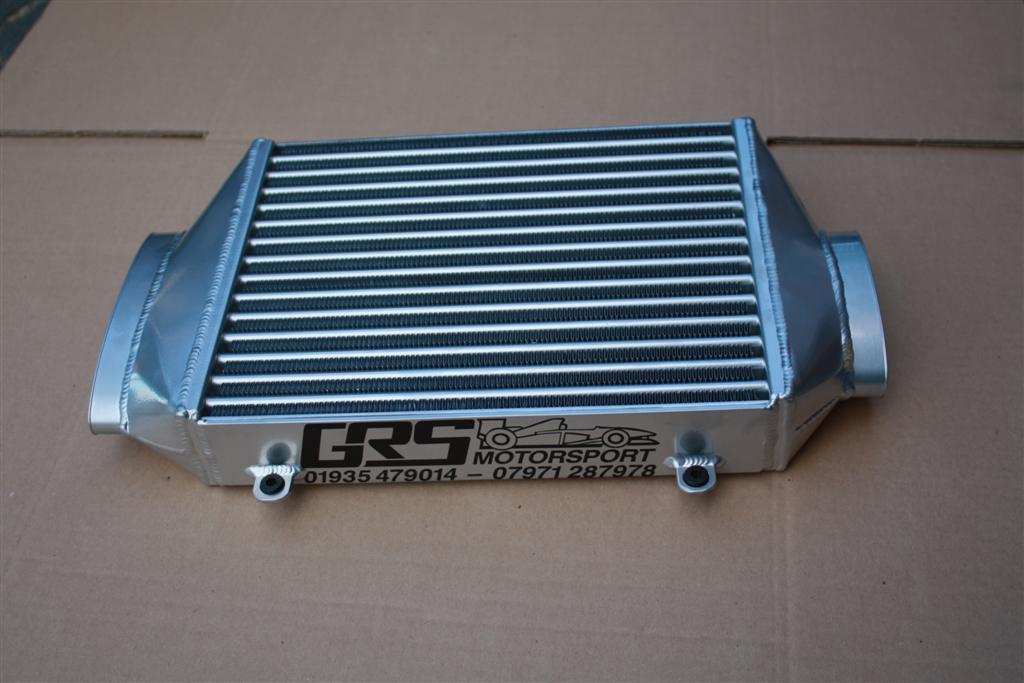

The end tanks have been specially designed to insure a ‘ram air effect’ is achieved through the core to achieve maximum cooling. ‘Boxed end tanks’ with sharp edges do not work as well as ‘Tapered end tanks’ as the charged air can become very lazy and turbulent within the intercooler and increases the pressure drop across the intercooler.
The standard Intercooler on the Mini Cooper S will only keep Air Charge Temperatures (ACT’s) down to a satisfactory level with boost levels of no more than around 8-9psi. Once the boost pressures have been raised the ACT’s associated with the higher boost levels can be excessive for a standard intercooler.

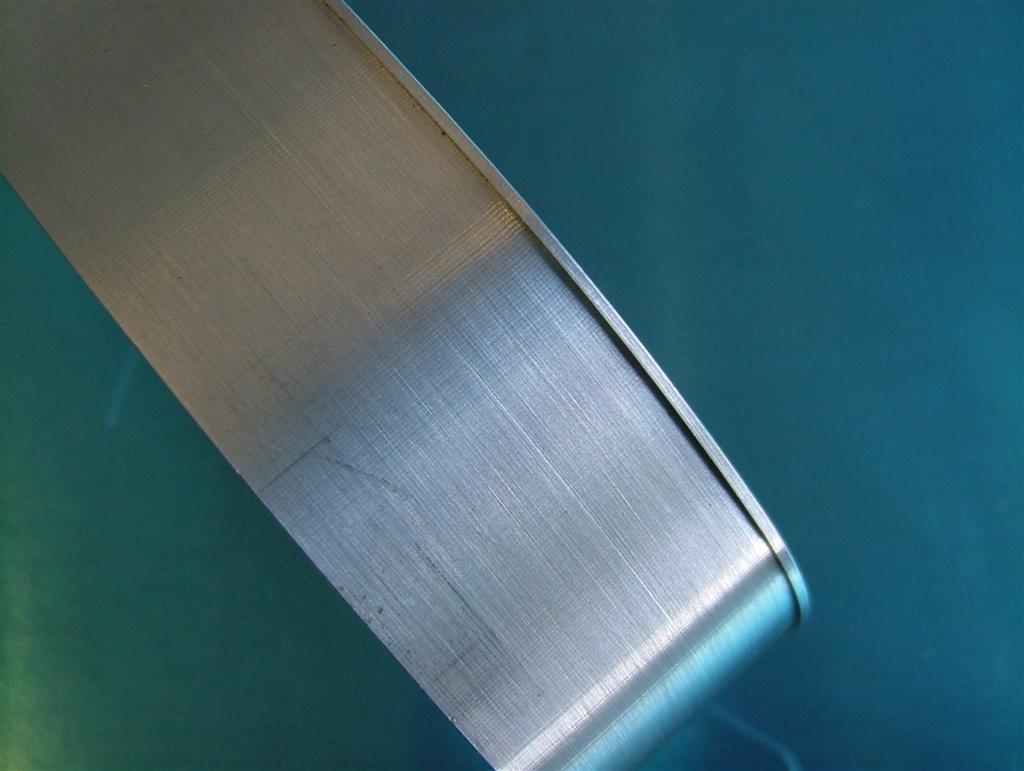

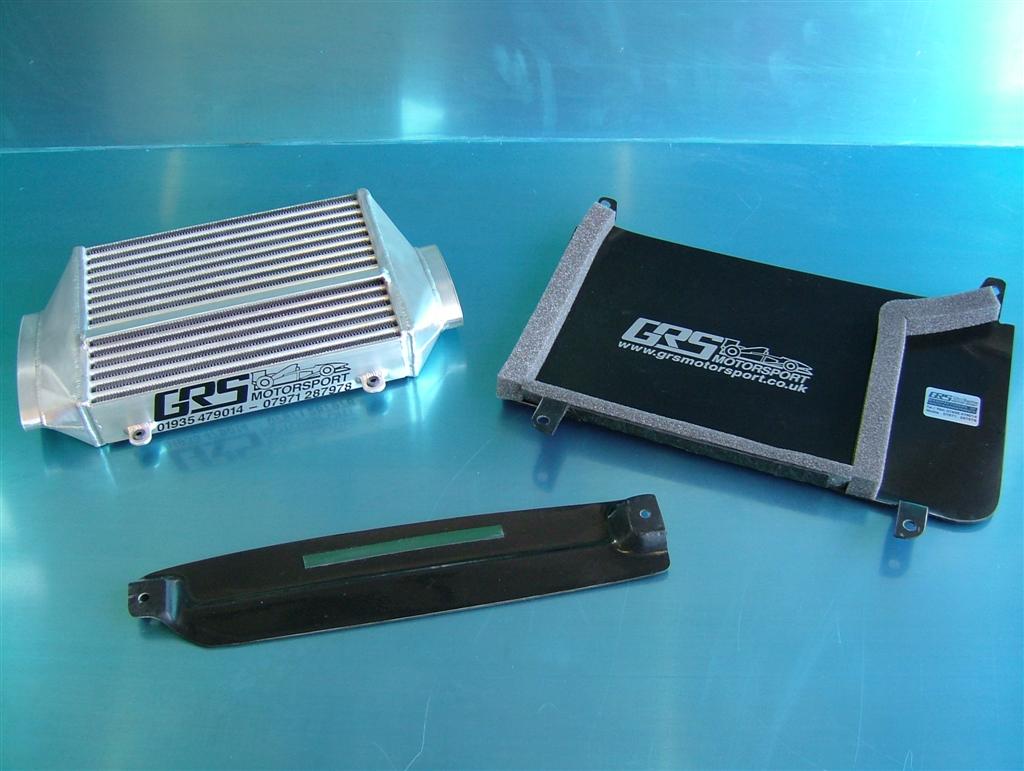

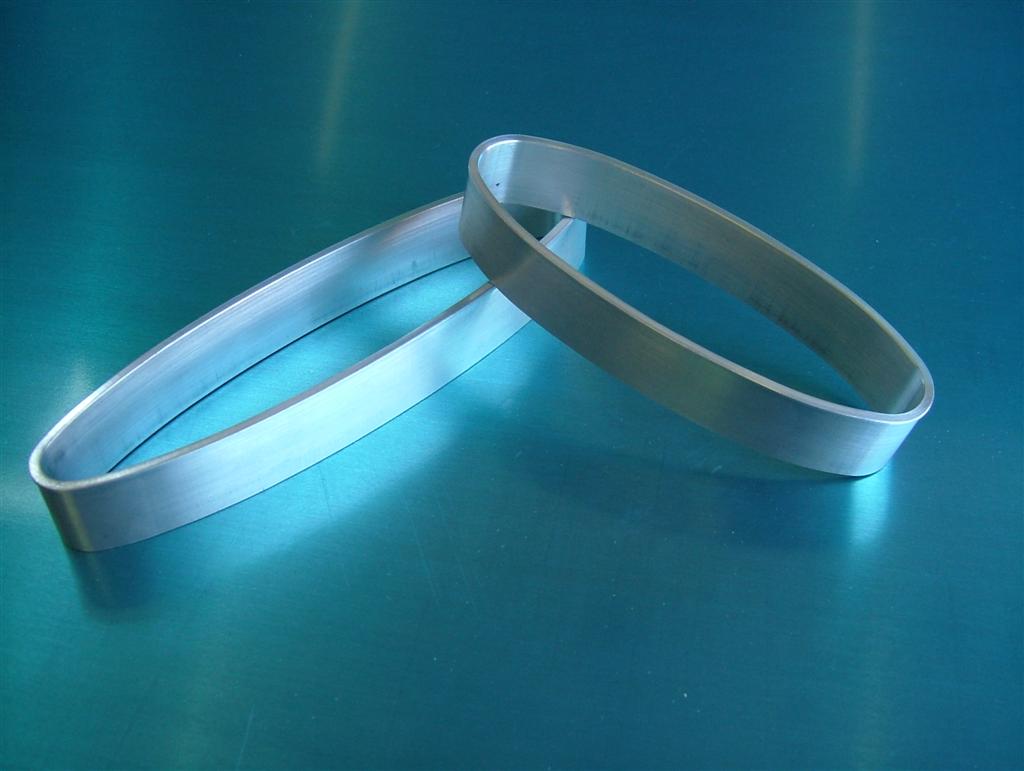

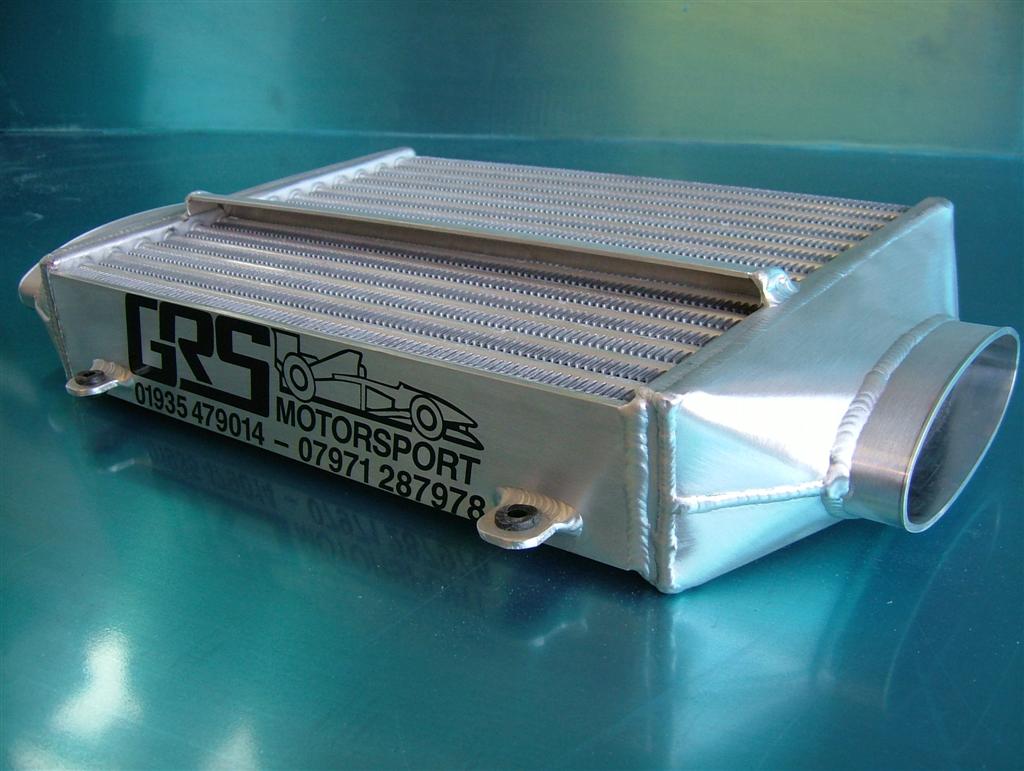

A new diffuser has now been introduced on the intercooler to help even out the air flow going through the scoop, making the cooling even more efficient. Also, CNC machined 'elliptical ends' from solid billet aluminium are now being used with a special machined edge to help prevent the rubber boots from slipping when using high boost levels.
