Escort RS Turbo S2

Intercoolers

Escort RS Turbo S2 Large Intercooler (twin pass) : £265.00
Escort RS Turbo S2 Large Intercooler (single pass) : £POA
Kenlowe 10" Fan : £POA

One major part of RS Turbo tuning which is commonly overlooked when tuning a car is the Air Charge Temperature cooling setup. The standard Intercooler on an Escort RS Turbo will only keep ACT's down to a satisfactory level (ie 50 degrees C or lower) with boost levels of no more than around 10psi. Most stage 1 RS Turbo's are chipped and are running between 15psi and 17psi of boost. This is all very well until you realise that the ACT's associated with these boost levels in conjunction with a standard Intercooler are excessive to say the least. They would be well over 70 degrees C almost straight away.

As ACT's rise, power is lost due to the the air containing less oxygen than when the air is cool. An effective Intercooler will keep your ACT's ideally below 40-45 degrees C at all times, thus ensuring that maximum power is always available even in hot weather.

Fitting a GRS Motorsport Large Intercooler to a Series 2 provides only one small problem, which is the radiator fan. Due to the size and location of the Intercooler, the standard Escort RS Turbo radiator fan can only be used if it is mounted on the front of the intercooler (therefore blowing through both the intercooler and the radiator). Most customers prefer not to mount anything on the intercooler for two reasons :- how it looks, and to not restrict air-flow to the intercooler. Therefore a solution has been found in the shape of a very thin radiator fan from Kenlowe. We can supply you the Kenlowe 10" Fan which is only 46mm thick, which fits in between the Intercooler and the Radiator at a discounted price. This solves any of the engine cooling issues when stuck in traffic.

The GRS Motorsport Large Intercooler for the S2 has undergone some more design changes to make it an even more efficient product. The latest version of this Intercooler, named the "EVO 3" utilises a totally new core, which is even wider for better air flow and therefore reduced pressure drop. The volume of the Intercooler has also been increased by 17% allowing the air to pass through the Intercooler for longer therefore being further cooled. The end tanks on the Intercooler are also as matched in size as possible, again for the best possible flow.

Caution must be given when fitting this intercooler as water temperatures may rise depending on ambient temperatures.
Please check your radiator is in good working order.

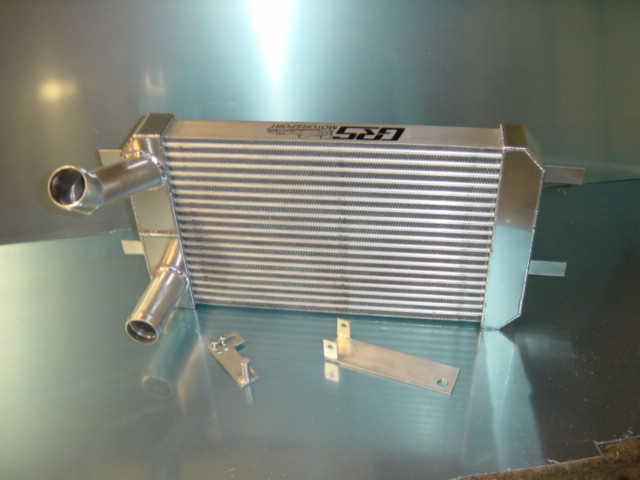

Picture : Escort RS Turbo S2  EVO 3 Large Intercooler

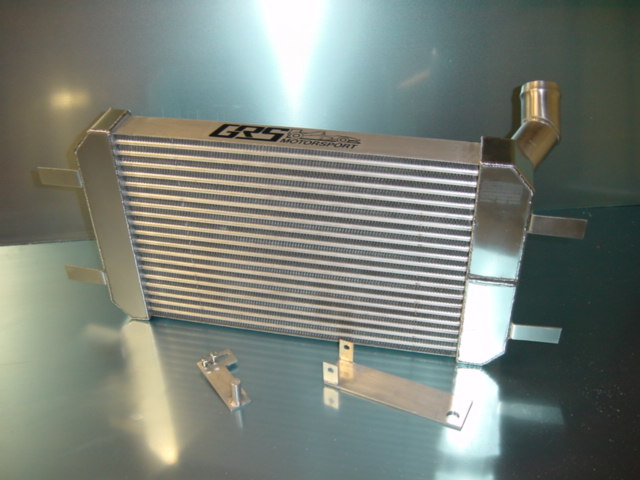

Picture : Escort RS Turbo S2  EVO 3 Large Intercooler


Picture : Escort RS Turbo S2 Large Intercooler

Picture : Escort RS Turbo S2 Large Intercooler

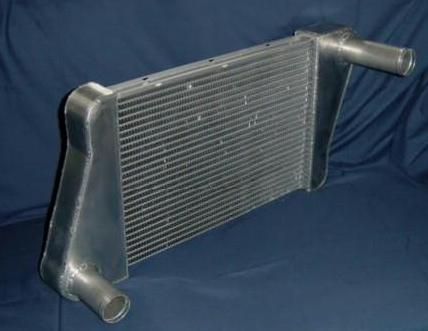

Picture : Escort RS Turbo S2 Large Intercooler (single pass)

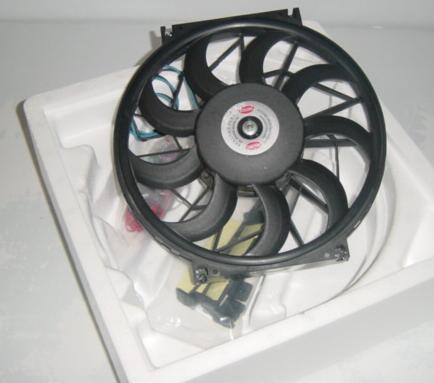

Picture : Kenlowe 10" Slim Fan

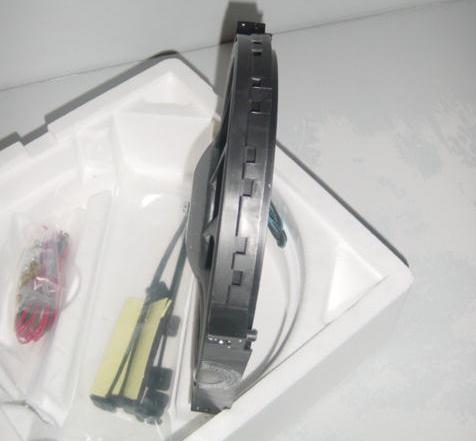

Picture : Kenlowe 10" Slim Fan (only 46mm thick)
